In the late 1990s and early 2000s, AMD Athlon processors, particularly those based on the Thunderbird core, attracted widespread attention not only for their performance, but also for an unusual and enthusiast-friendly feature: they could only be “unlocked” with a pencil.

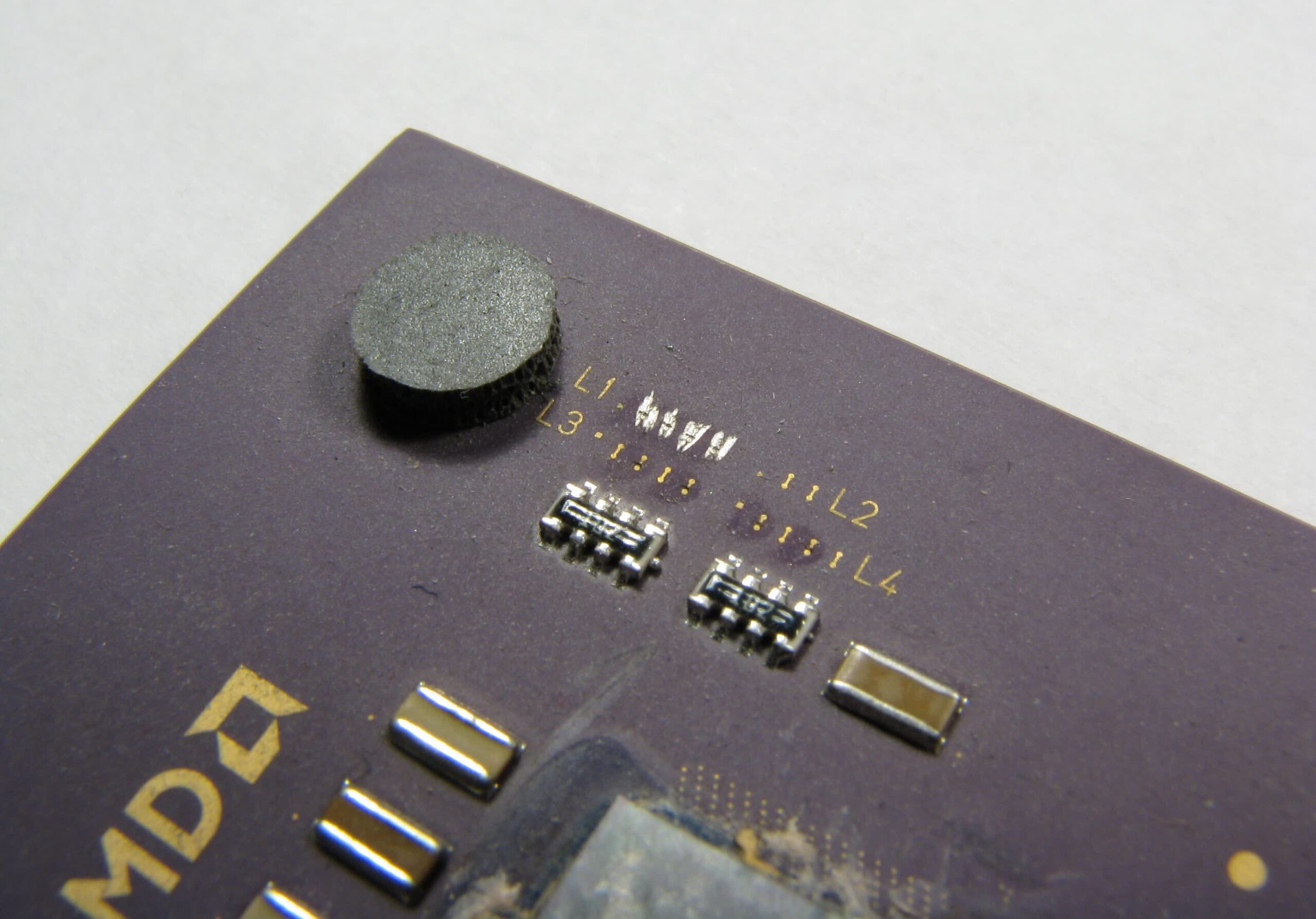

These CPUs, initially available in Slot A format and later in Socket A (Socket 462), were among the first from AMD to feature multiplier locking. To enforce the lock, AMD used lasers to separate the tiny copper connections on the surface of the processor, called L1 bridges.
This move was partly a response to unscrupulous computer sellers who overclocked lower-end chips, labeled them high-end models, and sold them at inflated prices.
But of course, it didn’t take long for enterprising enthusiasts to discover a workaround. By simply using the graphite of a #2 pencil – an inexpensive and accessible conductor – users were able to reconnect the L1 bridges on Athlon CPUs. This effectively restored access to the chip’s clock multiplier settings in the system BIOS, completing factory-broken circuitry and allowing users to optimize CPU speed well beyond factory specifications.
This DIY hack became widely known as the “pencil trick.”
Interesting fact: The “pencil trick” involved drawing tiny laser-cut L1 bridges with graphite to re-enable locked multipliers on early 2000s AMD CPUs.
The trick was particularly popular because it allowed for significant overclocking gains with minimal investment. At a time when Intel was more aggressively restricting its processors, AMD’s more customizable chips helped cement its reputation among performance enthusiasts and budget-conscious gamers.
Later revisions to the Athlon line, particularly when AMD switched from ceramic to organic PCB packages (as with the Palomino core used in Athlon XP CPUs), made the unlocking process more difficult. The laser cuts created deeper holes in the L1 bridges that could not be reliably bridged with graphite alone. Instead, conductive ink, silver paint, or special unlocking kits were required to close the gaps and restore functionality.
As our server guru Per Hansson explained in a guide at the time, successfully bridging these newer CPUs required more care, precision and better materials than the original pencil method allowed.
Still, the pencil trick remains one of the most famous examples of low-tech ingenuity in the history of PC hardware optimization and a testament to the creativity of early overclockers.
